Deals in Razor, Spring, Galvanised Wires & Wire Ropes

Available in 18" to 40" coil diameters in High Tensile Line Wire.

Material Specification
Wire: 2.5mm (+/-) 0.1mm High Tensile Galvanized Wire
Blade / Strip: 0.5mm (+/-) 0.05mm Galvanized Sheet


Concertina Razor Wire Specifications
Height	18" (+/-) 1"	36" (+/-) 1"
Length	10 - 12 meter	10 - 12 meter
Turns / Rounds	69 / 70	69 / 70
Clips	3	5


Blade Types
Blade Size	Style	Thickness	Line Diameter	Length	Width	Distance
*BTO-22*		0.5 (+/-) 0.05	2.5 (+/-) 0.1	22 (+/-) 1	15 (+/-) 1	34 (+/-) 1
*BTO-28*		0.5 (+/-) 0.05	2.5	28	15	45 (+/-) 1
*CBT-60*		0.6 (+/-) 0.05	2.5 (+/-) 0.1	60 (+/-) 2	32 (+/-) 1	100 (+/-) 2

Working load limits for slings using fibre cored rope of classes 6 x 19 and 6 x 36 in grade 1770 and having ferrule-secured eye terminations.
Angle to the Vertical	One Leg Sling	Two Sling		Three and Four Leg Sling		Endless Sling
Angle to the Vertical	0^o	0^o - 45^o	> 45^o - 60^o	0^o - 45^o	> 45^o - 60^o	0^o
Nominal Rope dia mm	Direct	Direct	Direct	Direct	Direct	Choke Hitch
					Working Load Limits (WLL)
	t	t	t	t	t	t
8	0.70	0.95	0.70	1.50	1.05	1.10
9	0.85	1.20	0.85	1.80	1.30	1.40
10	1.05	1.50	1.05	2.25	1.60	1.70
11	1.30	1.80	1.30	2.70	1.95	2.12
12	1.55	2.12	1.55	3.30	2.30	2.50
13	1.80	2.50	1.80	3.85	2.70	2.90
14	2.12	3.00	2.12	4.35	3.15	3.30
16	2.70	3.85	2.70	5.65	4.20	4.35
18	3.40	4.80	3.40	7.20	5.20	5.65
20	4.35	6.00	4.35	9.00	6.50	6.90
22	5.20	7.20	5.20	11.0	7.80	8.40
24	6.30	8.80	6.30	13.5	9.40	10.0
26	7.20	10.0	7.20	15.0	11.0	11.8
28	8.40	11.8	8.40	18.0	12.5	13.5
32	11.0	15.0	11.0	23.5	16.5	18.0
36	14.0	19.0	14.0	29.0	21.0	22.5
40	17.0	23.5	17.0	36.0	26.0	28.0
44	21.0	29.0	21.0	44.0	31.5	33.5
48	25.0	35.0	25.0	52.0	37.0	40.0
52	29.0	40.0	29.0	62.0	44.0	47.0
56	33.5	47.0	33.5	71.0	50.0	54.0
60	39.0	54.0	39.0	81.0	58.0	63.0
Leg Factor K_L	1	1.4	1	2.1	1.5	1.6

Working load limits for slings using steel cored rope of classes 6 x 19, 6 x 36 and 8 x 36 in grade 1770 and having ferrule-secured eye terminations.
Angle to the Vertical	One Leg Sling	Two Sling		Three and Four Leg Sling		Endless Sling
Angle to the Vertical	0^o	0^o - 45^o	> 45^o - 60^o	0^o - 45^o	> 45^o - 60^o	0^o
Nominal Rope dia mm	Direct	Direct	Direct	Direct	Direct	Choke Hitch
					Working Load Limits (WLL)
	t	t	t	t	t	t
8	0.75	1.05	0.75	1.55	1.10	1.20
9	0.950	1.30	0.95	2.00	1.40	1.50
10	1.15	1.60	1.15	2.40	1.70	1.35
11	1.40	2.00	1.40	3.00	2.12	2.25
12	1.70	2.30	1.70	3.55	2.50	2.70
13	2.00	2.80	2.00	4.15	3.00	3.15
14	2.25	3.15	2.25	4.80	3.40	3.70
16	3.00	4.20	3.00	6.30	4.50	4.80
18	3.70	5.20	3.70	7.80	5.65	6.00
20	4.60	6.50	4.60	9.80	6.90	7.35
22	5.65	7.80	5.65	11.8	8.40	9.00
24	6.70	9.40	6.70	14.0	10.0	10.6
26	7.80	11.0	7.80	16.5	11.5	12.5
28	9.00	12.5	9.00	19.0	13.5	14.5
32	11.8	16.5	11.8	25.0	17.5	19.0
36	15.0	21.0	15.0	31.5	22.5	23.5
40	18.5	26.0	18.5	39.0	28.0	30.0
44	22.5	31.5	22.5	47.0	33.5	36.0
48	26.0	37.0	26.0	55.0	40.0	42.0
52	31.5	44.0	31.5	66.0	47.0	50.0
56	36.0	50.0	36.0	76.0	54.0	58.0
60	42.0	58.0	42.0	88.0	63.0	67.0
Leg Factor K_L	1	1.4	1	2.1	1.5	1.6

Application	For general application spring and mechanical spring. We also try to supply the wire according customer's special requirement.
Material	High carbon steel.
Diameter	0.15mm -12mm
Packing	In coil or in carrier.
Standards	Din17223-1, EN10270-1; ASTM A227, ASTM A228, ASTM A313; JIS G3521,JIS G3522, JIS G4314.

Nominal Diameter (mm)	Tensile Strength (Mpa)
Nominal Diameter (mm)	Grade SL	Grade SM	Grade DM	Grade SH	Grade DH
0.6		2140-2400	2140-2400	2410-2670	2410-2670
0.63		2130-2380	2130-2380	2390-2650	2390-2650
0.65		2120-2370	2120-2370	2380 -2640	2380-2640
0.7		2690-2350	2090-2350	2360-2610	2360-2610
0.75		2070-2330	2070-2330	2340-2580	2340-2580
0.8		2050-2300	2050-2300	2310-2560	2310-2560
0.85		2030-2280	2030-2280	2290-2530	2290-2530
0.9		2010-2260	2010-2260	2270-2510	2270-2510
0.95		2000-2240	2000-2240	2250-2490	2250-2490
1	1720-1970	1980-2220	1980-2220	2230-2470	2230-2470
1.05	1710-1950	1960-2220	1960-2220	2210-2450	2210-2450
1.1	1690-1940	1950-2190	1950-2190	2200-2430	2200-2430
1.2	1670-1910	1920-2160	1920-2160	2170-2400	2170-2400
1.25	1660-1900	1910-2130	1910-2130	2140-2380	2140-2380
1.3	1640-1890	1900-2130	1900-2130	2140-2370	2140-2370
1.4	1620-1860	1870-2100	1870-2100	2110-2340	2110-2340
1.5	1600-1840	1850-2080	1850-2080	2090-2310	2090-2310
1.6	1590-1820	1830-2050	1830-2050	2060-2290	2060-2290
1.7	1570-1800	1810-2030	1810-2030	2040-2260	2040-2260
1.8	1550-1780	1790-2010	1790-2010	2020-2240	2020-2240
1.9	1540-1760	1770-1990	1770-1990	2000-2220	2000-2220
2	1520-1750	1760-1970	1760-1970	1980-2200	1980-2200
2.1	1510-1730	1740-1960	1740-1960	1970-2180	1970-2180
2.25	1490-1710	1720-1930	1720-1930	1940-2150	1940-2150
2.4	1470-1690	1700-1910	1700-1910	1920-2130	1920-2130
2.5	1460-1680	1690-1890	1690-1890	1900-2110	1900-2110
2.6	1450-1660	1670-1880	1670-1880	1890-2100	1890-2100
2.8	1420-1640	1650-1850	1650-1850	1860-2070	1860-2070
3	1410-1620	1630-1830	1630-1830	1840-2040	1840-2040
3.2	1390-1600	1610-1810	1610-1810	1820-2020	1820-2020
3.4	1370-1580	1590-1780	1590-1780	1790-1990	1790-1990
3.6	1350-1560	1570-1760	1570-1760	1770-1970	1770-1970
3.8	1340-1540	1550-1740	1550-1740	1750-1950	1750-1950
4	1320-1520	1530-1730	1530-1730	1740-1930	1740-1930
4.25	1310-1500	1510-1700	1510-1700	1710-1900	1710-1900
4.5	1290-1490	1500-1680	1500-1680	1690-1880	1690-1880
4.75	1270-1470	1480-1670	1480-1670	1680-1840	1680-1840
5	1260-1450	1460-1650	1460-1650	1660-1830	1660-1830
5.3	1240-1430	1440-1630	1440-1630	1640-1820	1640-1820
5.6	1230-1420	1430-1610	1430-1610	1620-1800	1620-1800
6	1210-1390	1400-1580	1400-1580	1590-1770	1590-1770
6.3	1190-1380	1390-1560	1390-1560	1570-1750	1570-1750
6.5	1180-1370	1380-1550	1380-1550	1560-1740	1560-1740
7	1160-1340	1350-1530	1350-1530	1540-1710	1540-1710
7.5	1140-1320	1330-1500	1330-1500	1510-1680	1510-1680
8	1120-1300	1310-1480	1310-1480	1490-1660	1490-1660
8.5	1110-1280	1290-1460	1290-1460	1470-1630	1470-1630
9	1090-1260	1270-1440	1270-1440	1450-1610	1450-1610
9.5	1070-1250	1260-1420	1260-1420	1430-1590	1430-1590
10	1060-1230	1240-1400	1240-1400	1410-1570	1410-1570
10.5		1220-1380	1220-1380	1390-1550	1390-1550
11		1210-1370	1210-1370	1380-1530	1380-1530
12		1180-1340	1180-1340	1350-1500	1350-1500
12.5		1170-1320	1170-1320	1330-1480	1330-1480
13		1160-1310	1160-1310	1320-1470	1320-1470
14		1130-1280	1130-1280	1290-1440	1290-1440

Application	Use for automotive seat springs, furniture springs, bed spring units, mattresses, furniture cusions, and automobile seats.
Material	Medium - High Carbon Steel Wire.
Diameter	1.4, 1.9, 2.1, 2.3, 2.4
Coating	Firm coating layer
Standards	JIS 3521 SW-B, ASTM (A407 - 07)

Dia (mm)	Tensile strength of wire(Mpa)
1.4	1700 ~ 1900
1.9	1600 ~ 1900
2.1
2.3
2.4

Application	Hotdipped galvanized steel wire for cable armouring.
Material	Carbon steel wire, iron wire, etc.
Diameter	0.90mm, 1.25mm, 1.60mm, 2.0mm, 2.5mm, 3.0mm, 3.9mm
Technical Info	Surface: hot-dipped zinc coated. Tensile strength: 340-500 N/mm² for all sizes. Elongation: Min. 10% for all sizes.
Packing	Jumbo coils, Plastic bags.
Standards	BSS EN-10257 & EN-10244-2

Material	Sizes	Tolerance (mm)	Tensile strength N/mm²	Elongation (Min)	Zinc coating g/m²	Elec. Resistance (Max.ohm/km)	Coil ID (mm)	Coil Wt (kgs)
Galvanized Steel Wire for Cable armoring	0.87mm	+/-0.025	340-500	Min.12%	Min.150	Max.233	350-500	400-500
	1.21mm	+/-0.035	340-500	12%	180	120	350-500	400-500
	1.54mm	+/-0.045	340-500	12%	195	74.13	350-500	500-600
	1.94mm	+/-0.05	340-500	12%	215	46.71	350-500	500-600
	2.43mm	+/-0.065	340-500	12%	230	29.77	350-500	500-600
	3.05mm	+/-0.07	340-500	12%	255	18.9	350-500	500-600
	3.80mm	+/-0.075	340-500	12%	275	12.18	350-500	500-600

Application	It is widely used to make springs under static loads such as spring, bed spring, seat spring, bicycle spoke, parasol spoke, green house fixing grip, various needles, cable case, wire entanglements and screen.
Packing	Jumbo Coils or Catchwieght Coils.
Standards	BSS 1052.

Sizes
11.20mm	10.00mm	9.00mm	8.00mm	7.10mm
6.30mm	5.60mm	5.00mm	4.50mm	4.00mm
3.55mm	3.15mm	2.80mm	2.50mm	2.00mm
1.80mm	1.60mm	1.40mm	1.25mm

Dia (mm)	Tensile StrengthN/mm²(Kgf/mm²)		Torsion not < 100 d	Wt. of Zinc Coating (g / m²)
Wire	Group B	Group C	Torsion not < 100 d	Wt. of Zinc Coating (g / m²)
0.8	165 - 200	185 - 225	16	50
1.0	165 - 195	185 - 220	16
1.2	155 - 195	175 - 210	15
1.4	153 - 190	170 - 210	15	60
1.6	150 - 180	160 - 195	14	60
1.8	150 - 180	160 - 195	12	80
2.2	140 - 160	155 - 185	9	80

Production

Packing

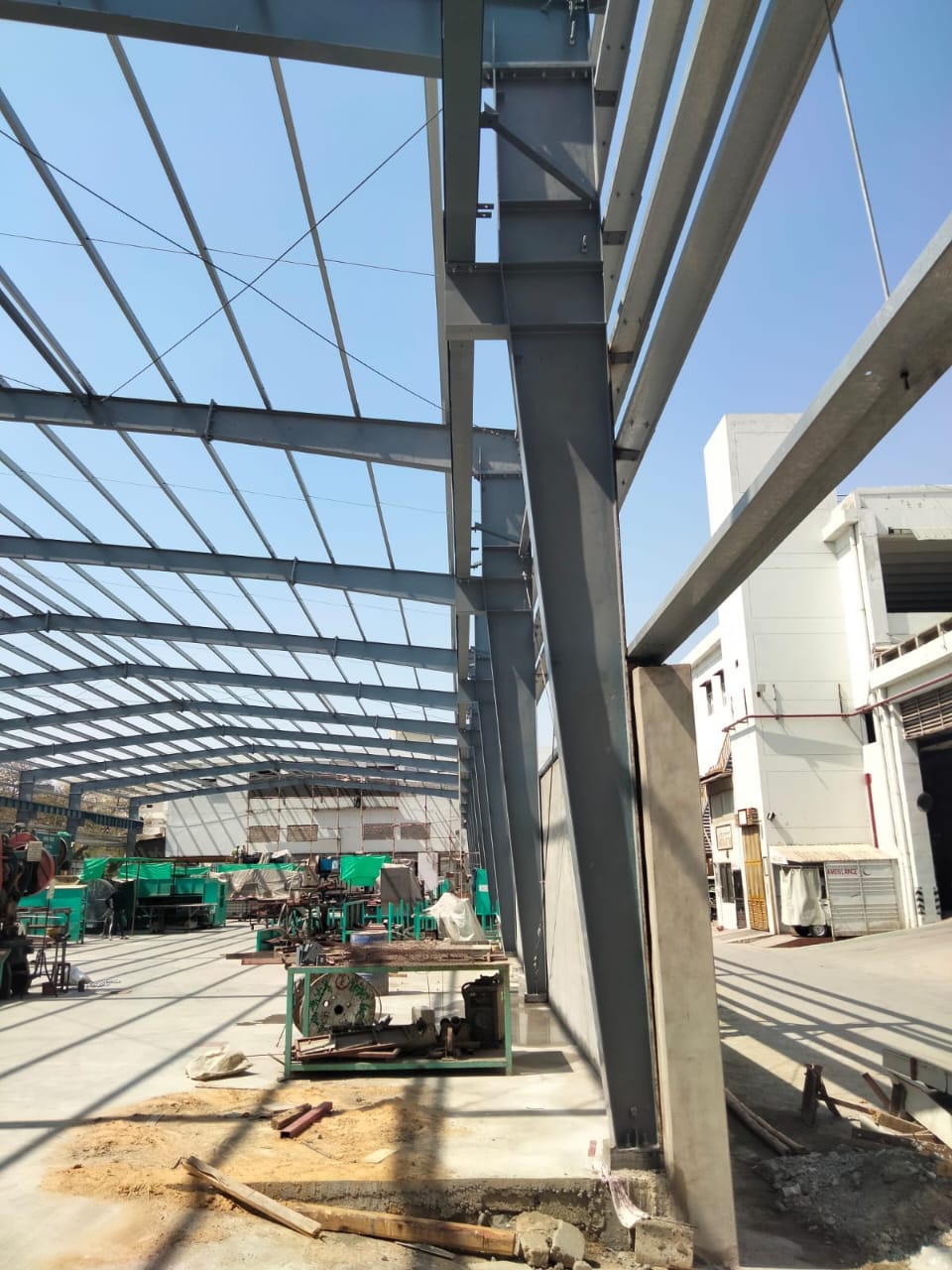

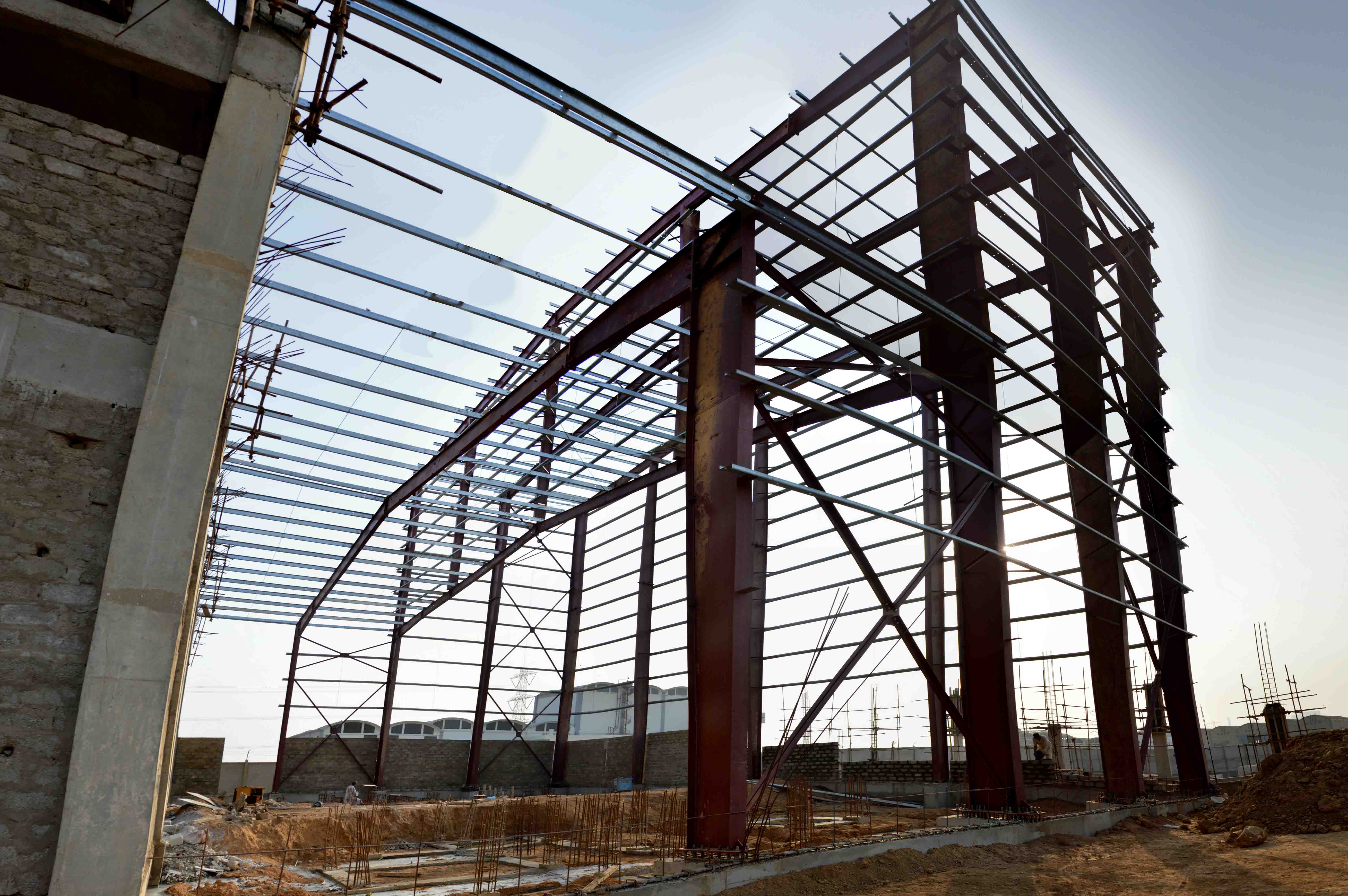

	"Pakistan Wire Ropes: Strength & Stability for Secure Sheds"

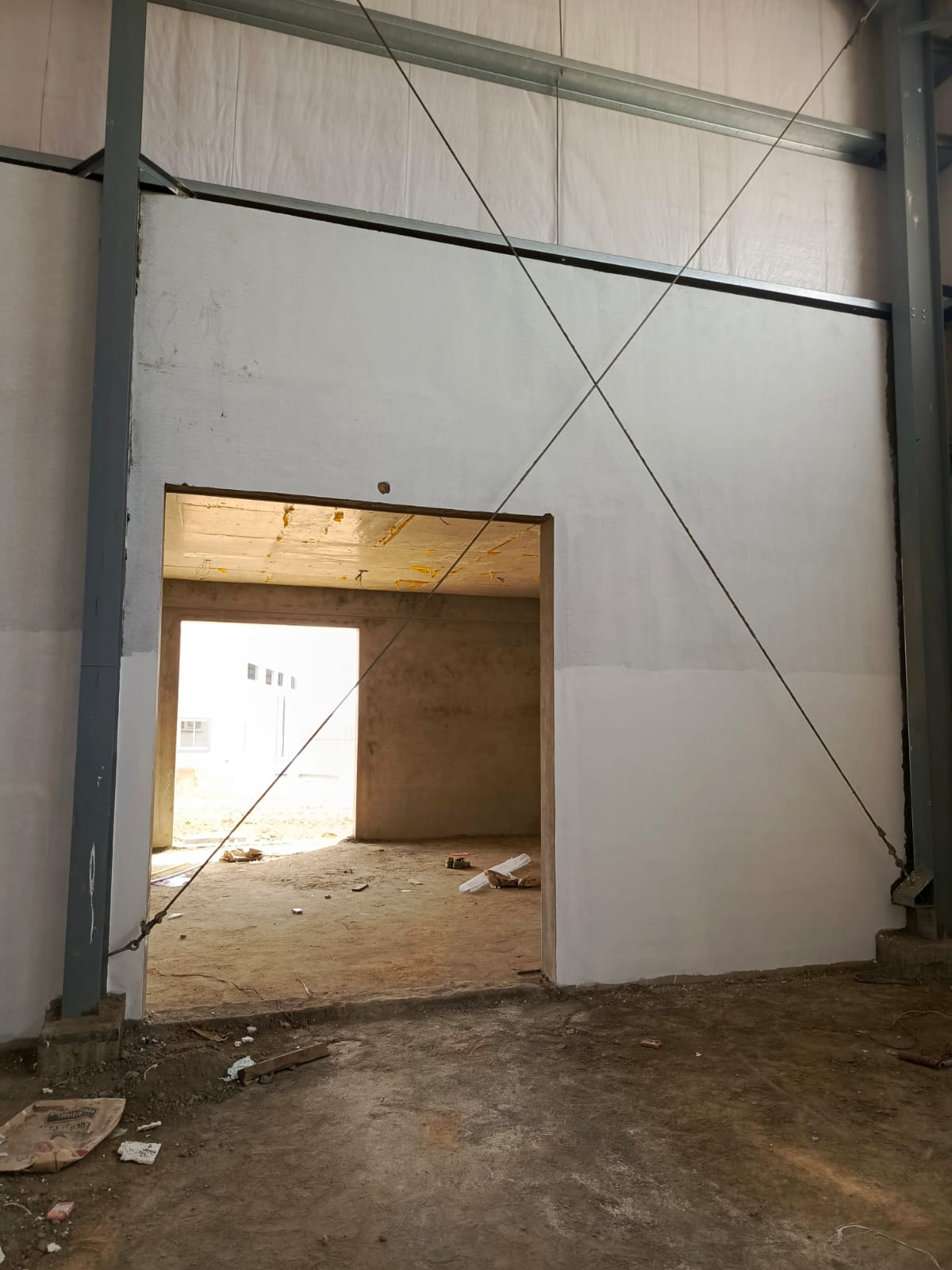

Application	Proper bracing is crucial for ensuring a safe and functional shed. Pakistan Wire Ropes are the preferred choice for shed buildings especially with long span sheds, providing excellent stability and prevent the sheds walls and roof from collapsing or sagging. These elements work together to resist forces like wind, snow load, and even minor earthquakes (depending on the location)
Diameter Range	10mm to 20mm

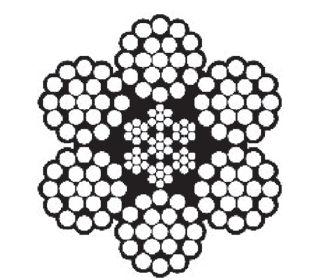

Construction	Galvanized, 6x19, IWRC/HC
Length	As per customer requirement, upto 2000 mtrs single length.
Standard	JIS G 3525 & BSS 302, GOST-7372 & DIN-1548
Certification	Mill test sheet and/or third-party inspection


	FC		IWRC
Wire Diameter	Tensile Strength 180 Kg/mm²	Approx Weight Kg/100m	Tensile Strength 180 Kg/mm²	Approx Weight Kg/100m
mm	Min Breaking Load (KN)	FC	Min Breaking Load (KN)	IWRC
10	54.30	33.37	58.80	38.10
11	65.80	40.80	71.10	46.10
12	78.20	48.50	84.60	54.90
13	91.80	57.00	99.30	64.40
14	107.00	66.10	115.00	74.70
16	139.00	86.30	150.00	97.50
18	176.00	109.00	190.00	123.00
20	217.00	135.00	235.00	152.00

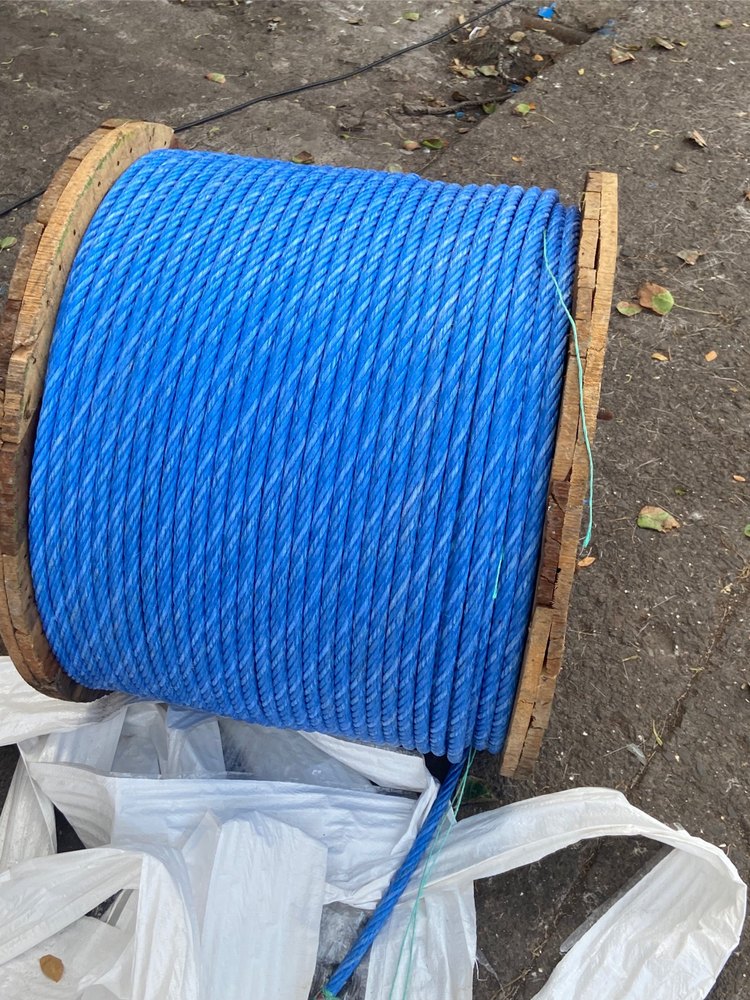

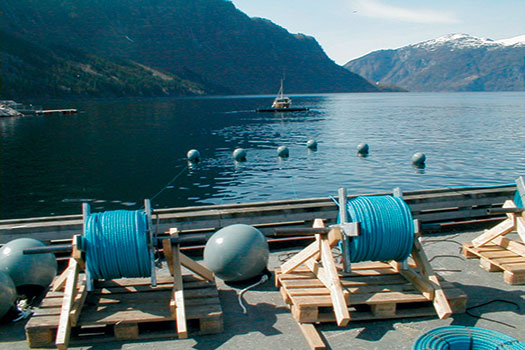

	"Pakistan Wire Ropes: Trusted for Generations by Fishermen"
Application	The durability, strength, and resistance to water and abrasion make Pakistan Wire Ropes Combination Ropes are reliable choice for various applications in the fishing industry. Combination Rope has the same construction as wire rope. However, each steel wire strand is covered with fiber which contributes to the rope having high tenacity with good abrasion resistance. In the process of water use, the rope inside the wire rope will not rust, thereby greatly increasing the service life of wire rope, but also has the strength of the steel wire rope. The rope is easy to handle and secures tight knots.
Diameter Range	12mm to 16mm

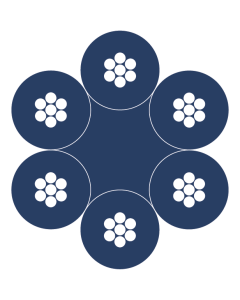

Construction	Galvanized, 6x19, Combination Rope PP Core.
Length	As per customer requirement, upto 2000m single length.
Color	Blue twine with orance tracer yarn (Customized color can be provided on demand)
Packaging	Packed in Coil or Reel.
Standard	JIS G 3525 * BSS 302, GOST-7372 & DIN-1548
Certification	Mill test sheet and/or third-party inspection.


PP Core
Wire Diameter mm	Min Breaking Load (KN)	PP Core
12	8.5	28.0
14	10.5	35.5
16	14.5	48.0

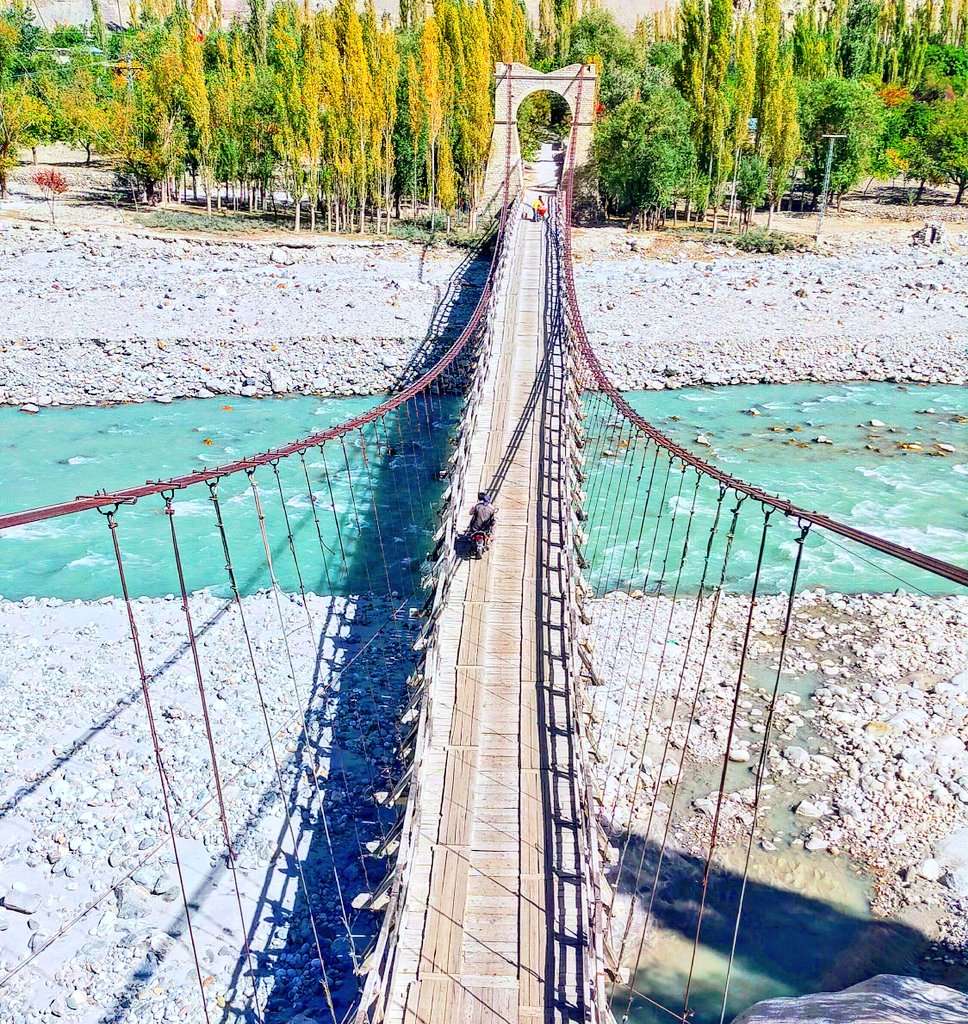

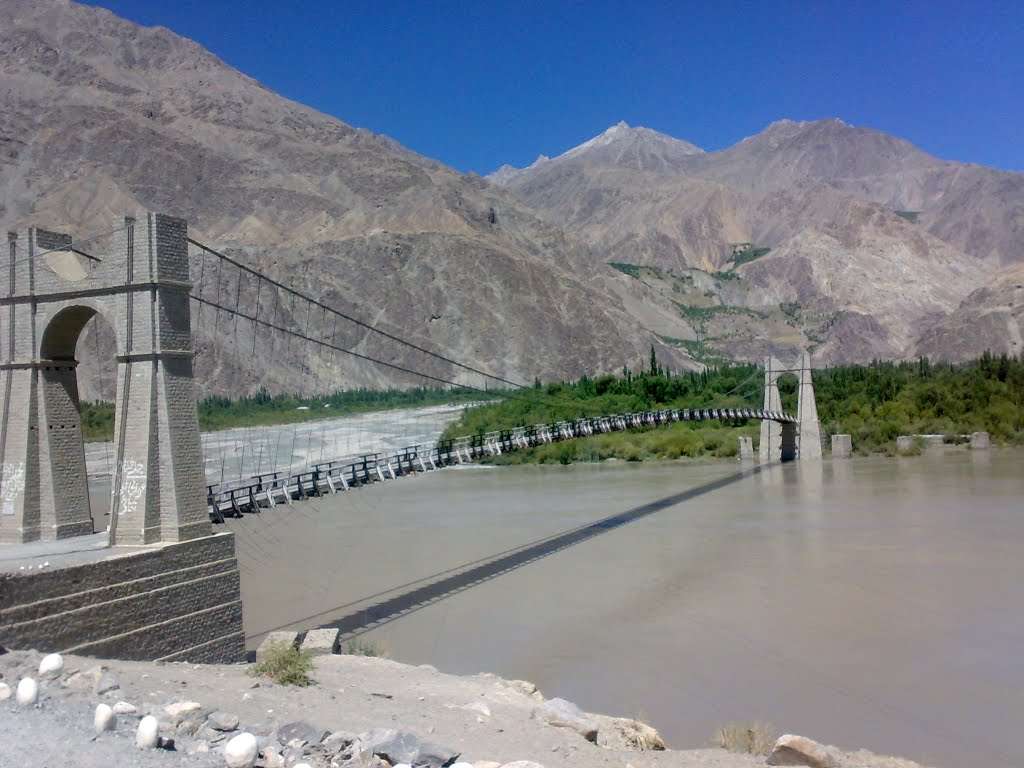

	"Pakistan Wire Ropes: The Strength Behind Breathtaking Spans
Application	In suspension bridges, steel wire rope plays a critical role in the suspension system, enabling these structures to achieve remarkable spans and immense loads. Pakistan Wire Rope has a track record of supplying high tensile steel wire rope to the northern valley of Pakistan providing excellent structural integrity. High quality steel wire rope serves as the backbone of the suspension system in these bridges. Its exceptional strength, flexibility, and ability to withstand immense loads make it an essential material for achieving the elegance and efficiency that define suspension bridges.
Diameter Range	18mm to 28mm
Construction	Galvanized/Ungalvanized. 6x19, HC/IWRC
Length	As per customer requirement, upto 2000 mtrs single length.
Standard	JIS G 3525 & BSS 302 & GOST-7372 & DIN-1548
Certification	Mill test sheet and/or third-party inspection.


	FC		IWRC
Wire Diameter	Tensile Strength 180 Kg/mm²	Approx Weight Kg/100m	Tensile Strength 180 Kg/mm²	Approx Weight Kg/100m
mm	Min Breaking Load (KN)	FC	Min Breaking Load (KN)	IWRC
18	176.00	109.00	190	123
20	217.00	135.00	235	152
22	263.00	163.00	284	184
24	313.00	194.00	338	219
26	367.00	228.00	397	258
28	426.00	264.00	461	299


FC					IWS
Diameter (mm)	Tensile Strength 150 Kgf/mm²	Tensile Strength 170 Kgf/mm²	Tensile Strength 180 Kgf/mm²	Approx Wt. Kg/100M	Tensile Strength 150 Kgf/mm²	Tensile Strength 170 Kgf/mm²	Tensile Strength 180 Kgf/mm²	Approx Wt. Kg/100M
Wire	Min Breaking Load (KN)				Min Breaking Load (KN)
3	4.39	4.98	5.28	3.10	4.74	5.39	5.71	3.48
4	7.80	8.87	9.40	5.50	8.44	9.59	10.10	6.19
5	12.20	13.80	14.60	8.60	13.10	14.90	15.80	9.68
6	17.50	19.90	21.10	12.40	18.90	21.50	22.80	13.90
7	23.90	27.10	28.70	16.90	25.80	29.30	31.10	19.00
8	31.20	35.40	37.60	22.00	33.70	38.30	40.60	24.80
9	39.50	44.90	47.50	27.90	42.70	48.50	51.40	31.30
10	48.80	55.40	58.70	34.40	52.70	59.90	63.50	38.70
11	59.00	67.00	71.10	41.60	63.80	72.50	76.80	46.80
12	70.20	79.80	84.60	49.50	75.90	86.30	91.50	55.70
13	82.40	93.70	99.30	58.10	89.10	101.00	107.00	65.40
14	95.60	108.00	115.00	67.40	103.00	117.00	124.00	75.90
16	124.00	141.00	150.00	88.10	135.00	153.00	162.00	99.10


FC
Diameter (mm)	Tensile Strength 170 Kgf/mm²	Tensile Strength 180 Kgf/mm²	Approx Wt. Kg/100M
Wire	Min Breaking Load (KN)		FC
6	12.60	13.30	8.32
7	17.10	18.10	11.30
8	22.30	23.70	14.80
9	28.30	30.00	18.70
10	34.90	37.00	23.10
11	42.20	44.80	28.00
12	50.30	53.30	33.30
14	68.40	72.50	45.30
16	89.40	94.70	59.10
18	113.00	120.00	74.80
20	140.00	148.00	92.40
22	169.00	179.00	112.00
24	201.00	213.00	133.00


FC				IWRC
Diameter (mm)	Tensile Strength 160 Kg/mm²	Tensile Strength 180 Kg/mm²	Approx Wt. Kg/100M	Tensile Strength 160 Kg/mm²	Tensile Strength 180 Kg/mm²	Approx Wt. Kg/100M
Wire	Min Breaking Load (KN)		FC	Min Breaking Load (KN)		IWRC
10	48.20	54.30	33.37	52.10	58.80	38.10
11	58.30	65.80	40.80	63.10	71.10	46.10
12	69.40	78.20	48.50	75.10	84.60	54.90
13	81.50	91.80	57.00	88.10	99.30	64.40
14	94.50	107.00	66.10	102.00	115.00	74.70
16	123.00	139.00	86.30	133.00	150.00	97.50
18	156.00	176.00	109.00	169.00	190.00	123.00
20	193.00	217.00	135.00	208.00	235.00	152.00
22	233.00	263.00	163.00	252.00	284.00	184.00
24	278.00	313.00	194.00	300.00	338.00	219.00
26	326.00	367.00	228.00	352.00	397.00	258.00
28	378.00	426.00	264.00	409.00	461.00	299.00
30	434.00	489.00	303.00	469.00	529.00	343.00


FC				IWRC
Diameter (mm)	Tensile Strength 160 Kg/mm²	Tensile Strength 180 Kg/mm²	Approx Wt. Kg/100M	Tensile Strength 160 Kg/mm²	Tensile Strength 180 Kg/mm²	Approx Wt. Kg/100M
Wire	Min Breaking Load (KN)		FC	Min Breaking Load (KN)		IWRC
10	51.80	58.40	36.00	55.90	63.00	40.50
11	62.70	70.70	43.50	67.60	76.20	49.10
12	74.60	84.10	51.80	803.50	90.70	58.40
13	87.60	98.70	60.80	94.50	105.00	68.50
14	102.00	114.00	70.50	110.00	124.00	79.50
16	133.00	150.00	92.10	143.00	161.00	104.00
18	168.00	189.00	117.00	181.00	204.00	131.00
20	207.00	234.00	144.00	224.00	252.00	162.00
22	251.00	283.00	174.00	271.00	305.00	196.00
24	298.00	336.00	207.00	322.00	363.00	234.00
26	350.00	395.00	243.00	378.00	426.00	274.00
28	406.00	458.00	282.00	438.00	494.00	318.00
30	466.00	526.00	324.00	503.00	567.00	365.00


FC
Diameter		Breaking Load in Metric Tons			Approx Wt. Kg/Meter
mm	Inch	150 Kg/mm²	165 Kg/mm²	180 Kg/mm²	Approx Wt. Kg/Meter
8	5/16	2.97	3.21	3.50	0.212
9	3/8	3.75	4.06	4.43	0.269
10	-	4.64	5.02	5.47	0.332
11.2	7/16	5.82	6.29	6.86	0.416
12	-	6.68	7.22	7.87	0.478
12.5	1/2	7.25	7.84	8.55	0.519
14	9/16	9.09	9.83	10.7	0.651
16	5/8	11.9	12.8	14.0	0.85
18	11/16	15.0	16.2	17.7	1.08
19	3/4	16.8	18.1	19.7	1.20
20	13/16	18.5	20.1	21.9	1.33
22	7/8	22.5	24.3	27.5	1.61
24	15/16	26.7	28.9	31.5	1.91
25	1	29.0	31.3	34.1	2.08
28	1_1/8	36.4	39.3	42.9	2.60
30	1_3/16	41.8	45.1	49.2	2.99
32	1_1/4	47.5	51.4	56.1	3.40
35	1_3/8	56.8	61.5	67.0	4.07
38	1_1/2	67.0	72.4	78.9	4.79
40	1_19/32	74.2	80.2	87.5	5.31
42	-	81.8	88.5	96.5	5.86
44	1_3/4	89.8	97.1	106.0	6.43
46	1_13/16	98.2	106.0	115.0	7.03
48	1_7/8	107.0	116.0	126.0	7.65
50	1_31/32	117.0	125.0	136.0	8.30
51	2	121.0	131.0	142.0	8.64
52	2_1/16	125.0	136.0	148.0	8.98
56	-	145.0	157.0	171.0	10.4
58	2_5/16	156.0	169.0	184.0	11.2
60	2_3/8	167.0	180.0	196.0	12.0
63	2_1/2	184.0	199.0	217.0	13.2
71	2_13/16	234.0	253.0	276.0	16.7
75	2_31/32	261.0	282.0	307.0	18.7
80	3_5/32	297.0	321.0	350.0	21.3
84	3_5/16	327.0	354.0	386.0	23.4
88	3_15/32	359.0	389.0	423.0	25.7


		FC					IWRC
Diameter		Tensile Strength 150 Kg/mm²	Tensile Strength 165 Kg/mm²	Tensile Strength 180 Kg/mm²	Tensile Strength 195 Kg/mm²	Approx Wt. Kg/100M	Tensile Strength 165 Kg/mm²	Tensile Strength 180 Kg/mm²	Tensile Strength 195 Kg/mm²	Approx Wt. Kg/100M
mm	Inch	Min Breaking Load (KN)				FC	Min Breaking Load (KN)			IWRC
6	1/4	1.79	2.00	2.13	2.39	0.139	2.28	2.47	2.64	0.155
7	9/32	2.44	2.72	2.89	3.24	0.189	3.10	3.36	3.60	0.211
8	5/18	3.19	3.55	3.78	4.25	0.247	4.05	4.30	4.70	0.276
9	3/8	4.04	4.50	4.78	5.38	0.312	5.13	5.45	5.95	0.349
10	-	4.99	5.55	5.91	6.64	0.386	6.33	6.72	7.34	0.431
11.2	7/16	6.26	6.96	7.41	8.33	0.484	7.94	8.44	9.21	0.540
12	-	7.18	7.99	8.51	9.56	0.555	9.12	9.68	10.6	0.620
12.5	1/2	7.79	8.67	9.23	10.4	0.603	9.89	10.5	11.5	0.673
14	9/16	9.78	10.9	11.6	13.0	0.756	12.4	13.2	14.4	0.844
16	5/8	12.8	14.2	15.1	17.0	0.988	16.2	17.2	18.8	1.10
18	11/16	16.2	18.0	19.1	21.5	1.25	20.5	21.8	23.8	1.40
19	3/4	18.0	20.0	21.3	24.0	1.39	22.9	24.3	26.5	1.56
20	13/16	20.0	22.2	23.6	26.5	1.54	25.3	26.9	29.4	1.72
22	7/8	25.0	26.9	28.6	33.3	1.94	30.6	32.5	36.8	2.16
24	15/16	28.7	32.0	34.0	38.0	2.22	36.5	38.7	42.3	2.48
25	1	31.2	34.7	36.9	41.5	2.41	39.5	42.0	45.9	2.69
28	1_1/8	39.1	43.5	46.3	52.0	3.02	49.6	52.7	57.5	3.38
30	1_3/16	44.9	50.0	53.2	59.7	3.47	56.9	60.5	66.1	3.88
32	1_1/4	51.1	56.8	60.5	68.0	3.95	64.8	68.9	75.2	4.41
35	1_3/8	61.1	68.0	72.4	81.3	4.73	77.5	82.3	90.0	5.28
38	1_1/2	72.1	80.1	85.3	95.8	5.57	91.4	97.1	106.0	6.22
40	1_19/32	79.8	88.8	94.5	106.0	6.17	101.0	108.0	117.0	6.89
42	-	88.0	97.9	104.0	117.0	6.81	112.0	119.0	129.0	7.60
44	1_3/4	96.6	107.0	114.0	128.0	7.47	123.0	130.0	142.0	8.34
46	1_13/16	106.0	117.0	125.0	140.0	8.16	134.0	142.0	155.0	9.12
48	1_7/8	115.0	128.0	136.0	153.0	8.89	146.0	155.0	169.0	9.93
50	1_31/32	125.0	139.0	148.0	166.0	9.64	158.0	168.0	184.0	10.8
51	2	130.0	144.0	154.0	173.0	10.0	165.0	175.0	191.0	11.2
52	2_1/16	135.0	150.0	160.0	180.0	10.4	171.0	182.0	199.0	11.7
56	-	157.0	174.0	185.0	208.0	12.1	198.0	211.0	230.0	13.5
58	2_5/16	168.0	187.0	199.0	223.0	13.0	213.0	226.0	248.0	14.5
60	2_3/8	180.0	200.0	213.0	238.0	13.9	228.0	242.0	265.0	15.6
63	2_1/2	198.0	220.0	235.0	264.0	15.3	251.0	267.0	292.0	17.1
71	2_13/16	252.0	280.0	298.0	335.0	19.4	319.0	339.0	371.0	21.8
75	2_31/32	281.0	313.0	333.0	374.0	21.7	356.0	378.0	414.0	24.3
80	3_5/32	320.0	356.0	379.0	425.0	24.7	405.0	430.0	471.0	27.6
84	3_5/16	353.0	392.0	418.0	469.0	27.2	447.0	474.0	519.0	30.5


FC						IWRC
Diameter (mm)	Tensile Strength 150 Kg/mm²	Tensile Strength 165 Kg/mm²	Tensile Strength 180 Kg/mm²	Tensile Strength 195 Kg/mm²	Approx Wt. Kg/100M	Tensile Strength 165 Kg/mm²	Tensile Strength 180 Kg/mm²	Tensile Strength 195 Kg/mm²	Approx Wt. Kg/100M
Wire	Min Breaking Load (KN)				FC	Min Breaking Load (KN)			IWRC
6	1.86	2.04	2.17	2.41	0.142	2.28	2.48	2.62	0.159
7	2.53	2.78	2.96	3.28	0.194	2.10	3.38	3.57	0.216
8	3.30	3.63	3.86	4.28	0.253	4.15	4.41	4.66	0.282
9	4.17	4.59	4.88	5.41	0.321	5.25	5.58	5.90	0.356
10	5.15	5.67	6.03	6.68	0.396	6.48	6.89	7.29	0.440
11.2	6.46	7.11	7.56	8.38	0.496	8.13	8.64	9.14	0.552
12	7.41	8.16	8.68	9.62	0.570	9.33	9.91	10.5	0.634
12.5	8.05	8.85	9.42	10.4	0.618	10.1	10.8	11.4	0.688
14	10.10	11.1	11.8	13.1	0.776	12.7	13.5	14.3	0.862
16	13.20	14.5	15.4	17.1	1.01	16.6	17.6	18.7	1.13
18	16.70	18.4	19.5	21.6	1.28	21.0	22.3	23.6	1.43
19	18.60	20.5	21.8	24.1	1.43	23.4	24.9	26.3	1.59
20	20.6	22.7	24.1	26.7	1.58	25.9	27.6	29.1	1.76
22	24.9	27.4	30.2	33.5	1.92	31.4	33.3	36.6	2.13
24	29.7	32.6	34.7	38.5	2.28	37.3	39.7	42.0	2.53
25	32.2	35.4	37.7	41.8	2.47	40.5	43.1	45.5	2.75
28	40.4	44.4	47.3	52.4	3.10	50.8	54.0	57.1	3.45
30	46.4	51.0	54.2	60.1	3.56	58.3	62.0	65.6	3.96
32	52.7	58.0	61.7	68.4	4.05	66.4	70.5	74.6	4.51
35	63.1	69.5	73.9	81.3	4.85	79.4	84.4	89.2	5.40
38	74.4	81.8	87.0	96.5	5.72	93.6	99.4	105.0	6.35
40	82.4	90.7	96.4	107.0	6.33	104.0	110.0	117.0	7.04
42	90.9	100.0	106.0	118.0	6.98	114.0	121.0	129.0	7.76
44	99.7	110.0	117.0	129.0	7.66	125.0	133.0	141.0	8.52
46	109.0	120.0	128.0	141.0	8.38	137.0	146.0	154.0	9.31
48	119.0	131.0	139.0	154.0	9.12	149.0	159.0	168.0	10.2
50	129.0	142.0	151.0	167.0	9.90	162.0	172.0	182.0	11.0
51	134.0	147.0	157.0	174.0	10.3	169.0	179.0	189.0	11.4
52	139.0	153.0	163.0	181.0	10.7	175.0	186.0	197.0	11.9
56	162.0	178.0	189.0	210.0	12.4	203.0	216.0	229.0	13.8
58	173.0	191.0	203.0	225.0	13.3	218.0	232.0	245.0	14.8
60	185.0	204.0	217.0	241.0	14.2	233.0	248.0	262.0	15.9
63	204.0	225.0	239.0	266.0	15.7	257.0	274.0	289.0	17.5
71	259.0	286.0	304.0	337.0	19.9	327.0	347.0	367.0	22.3
75	289.0	319.0	339.0	377.0	22.2	365.0	388.0	409.0	24.8
80	329.0	363.0	386.0	428.0	25.2	415.0	441.0	466.0	28.3
84	363.0	400.0	425.0	472.0	27.8	457.0	486.0	514.0	31.2


	FC					IWRC
Diameter		Tensile Strength 150 Kg/mm²	Tensile Strength 165 Kg/mm²	Tensile Strength 180 Kg/mm²	Tensile Strength 195 Kg/mm²	Approx Wt. Kg/100M	Tensile Strength 165 Kg/mm²	Tensile Strength 180 Kg/mm²	Tensile Strength 195 Kg/mm²	Approx Wt. Kg/100M
mm	Inch	Min Breaking Load (KN)				FC	Min Breaking Load (KN)			IWRC
6	1/4	1.85	2.04	2.17	2.40	0.142	2.30	2.50	2.68	0.158
7	9/32	2.52	2.78	2.95	3.27	0.194	3.12	3.37	3.65	0.216
8	5/18	3.30	3.63	3.86	4.27	0.253	4.08	4.40	4.77	0.282
9	3/8	4.17	4.60	4.88	5.41	0.320	5.24	5.58	6.03	0.356
10	-	5.15	5.68	6.03	6.68	0.395	6.48	6.89	7.45	0.440
11.2	7/16	6.23	6.87	7.29	8.08	0.478	8.12	8.64	9.01	0.532
12	-	7.42	8.17	8.68	9.61	0.569	9.32	9.92	10.7	0.634
12.5	1/2	8.05	8.87	9.41	10.4	0.617	10.2	10.8	11.6	0.688
14	9/16	10.10	11.1	11.80	13.1	0.774	12.7	13.5	14.6	0.862
16	5/8	13.20	14.5	15.40	17.1	1.01	16.6	17.6	19.1	1.13
18	11/16	16.70	18.4	19.50	21.6	1.28	21.0	22.3	24.1	1.43
19	3/4	18.60	20.5	21.8	24.1	1.43	23.4	24.9	26.9	1.59
20	13/16	20.60	22.7	24.1	26.7	1.58	25.9	27.6	29.8	1.76
22	7/8	24.90	27.4	29.2	33.5	1.99	31.4	33.3	37.3	2.21
24	15/16	29.70	32.6	34.7	38.5	2.28	37.3	39.7	42.9	2.53
25	1	32.20	35.4	37.7	41.7	2.47	40.5	43.1	46.5	2.75
28	1_1/8	40.50	44.4	47.3	52.3	3.10	50.8	54.0	58.3	3.45
30	1_3/16	46.40	51.0	54.2	60.1	3.56	58.3	62.0	67.0	3.96
32	1_1/4	52.70	58.0	61.7	68.4	4.05	66.4	70.5	76.2	4.51
35	1_3/8	63.10	69.3	73.8	81.8	4.85	79.3	84.3	91.2	5.40
38	1_1/2	74.4	81.8	87.0	96.4	5.72	93.6	99.4	107.0	6.35
40	1_19/32	82.4	90.7	96.4	107.0	6.33	104.0	110.0	119.0	7.04
42	-	90.9	100.0	106.0	118.0	6.98	114.0	121.0	131.0	7.76
44	1_3/4	99.8	110.0	117.0	129.0	7.66	125.0	133.0	144.0	8.52
46	1_13/16	109.0	120.0	128.0	141.0	8.38	137.0	146.0	157.0	9.31
48	1_7/8	119.0	131.0	139.0	154.0	9.12	149.0	159.0	171.0	10.1
50	1_31/32	129.0	142.0	151.0	167.0	9.90	162.0	172.0	186.0	11.0
51	2	134.0	148.0	157.0	174.0	10.3	168.0	179.0	194.0	11.4
52	2_1/16	139.0	153.0	163.0	181.0	10.7	175.0	186.0	201.0	11.9
56	-	162.0	178.0	189.0	209.0	12.4	203.0	216.0	233.0	13.8
58	2_5/16	173.0	191.0	203.0	225.0	13.3	218.0	232.0	250.0	14.8
60	2_3/8	185.0	204.0	217.0	240.0	14.2	233.0	248.0	268.0	15.8
63	2_1/2	204.0	225.0	239.0	265.0	15.7	257.0	273.0	295.0	17.5
71	2_13/16	260.0	286.0	-	-	20.0	326.0	-	-	22.2
75	2_31/32	290.0	319.0	-	-	22.3	364.0	-	-	24.8
80	3_5/32	330.0	363.0	-	-	25.4	414.0	-	-	28.2
85	3_5/16	364.0	400.0	-	-	28.0	-	-	-	-


FC						IWRC
Diameter (mm)	Tensile Strength 150 Kg/mm²	Tensile Strength 165 Kg/mm²	Tensile Strength 180 Kg/mm²	Tensile Strength 195 Kg/mm²	Approx Wt. Kg/100M	Tensile Strength 150 Kg/mm²	Tensile Strength 165 Kg/mm²	Tensile Strength 180 Kg/mm²	Tensile Strength 195 Kg/mm²	Approx Wt. Kg/100M
Wire	Min Breaking Load (KN)				FC	Min Breaking Load (KN)				IWRC
8	3.19	3.46	3.69	3.99	0.230	3.59	3.95	4.16	4.49	0.255
9	4.04	4.38	4.67	5.04	0.291	4.55	5.00	5.26	5.68	0.323
10	4.99	5.41	5.76	6.22	0.359	5.50	6.05	6.50	7.02	0.398
11.2	6.26	6.79	7.23	7.81	0.451	6.90	7.58	8.15	8.80	0.500
12	7.19	7.79	8.29	8.95	0.517	7.94	8.72	9.37	10.10	0.573
12.5	7.80	8.45	9.00	9.72	0.561	8.60	9.45	10.10	10.90	0.622
14	9.81	10.60	11.30	12.20	0.704	10.80	11.90	12.80	13.80	0.781
16	12.80	13.80	14.70	15.90	0.920	14.10	15.50	16.60	17.90	1.00
18	16.20	17.50	18.70	20.20	1.16	17.80	19.50	21.00	22.70	1.29
19	18.00	19.50	20.80	22.20	1.30	20.00	22.00	23.70	25.60	1.45
20	19.90	21.60	23.00	24.80	1.44	22.00	24.20	26.00	28.10	1.60
22	24.20	26.20	27.90	31.20	1.74	26.50	29.20	32.60	35.20	2.00
24	28.70	31.20	33.20	35.90	2.07	30.40	33.40	35.90	38.80	2.30
25	31.20	33.80	36.00	38.90	2.25	34.30	37.70	40.50	43.70	2.50
28	39.00	42.40	45.20	48.80	2.82	43.20	47.50	51.00	55.10	3.13
30	44.80	48.70	51.80	55.90	3.23	49.50	54.50	58.50	63.20	3.58
32	51.10	55.40	59.00	63.00	3.68	56.30	61.90	66.60	71.90	4.00
35	61.10	66.30	70.60	75.80	4.40	68.00	74.20	79.70	86.10	4.88
38	72.10	78.10	83.20	89.40	5.19	79.50	87.30	94.00	101.00	5.75
40	79.70	86.60	92.20	99.60	5.75	87.80	96.50	104.00	112.00	6.40
42	88.00	95.40	102.00	112.00	6.34	96.70	106.00	114.00	123.00	7.03
44	96.60	105.00	112.00	120.00	6.96	106.00	117.00	125.00	135.00	7.72
46	106.00	114.00	122.00	132.00	7.60	116.00	127.00	137.00	148.00	8.43
48	115.00	125.00	133.00	143.00	8.28	127.00	139.00	150.00	161.00	9.17
50	125.00	135.00	144.00	156.00	8.98	138.00	151.00	163.00	176.00	9.95
51	130.00	141.00	150.00	162.00	9.34	143.00	157.00	170.00	183.00	10.40
52	135.00	146.00	156.00	168.00	9.72	149.00	163.00	176.00	190.00	10.80
56	156.00	170.00	181.00	195.00	11.30	172.00	190.00	204.00	220.00	12.50
58	168.00	182.00	194.00	210.00	12.10	185.00	204.00	219.00	236.00	13.40
60	179.00	195.00	207.00	224.00	12.90	198.00	218.00	234.00	253.00	14.30
63	198.00	215.00	229.00	247.00	14.30	218.00	240.00	258.00	279.00	15.80
71	251.00	273.00	291.00	314.00	18.20	277.00	304.00	327.00	353.00	20.10
75	281.00	304.00	324.00	351.00	20.20	309.00	340.00	365.00	394.00	22.04
80	319.00	346.00	369.00	399.00	23.00	352.00	387.00	416.00	449.00	25.50
84	352.00	382.00	406.00	440.00	25.40	388.00	427.00	459.00	495.00	28.10
88	386.00	419.00	446.00	483.00	27.80	426.00	468.00	503.00	543.00	30.90
95	450.00	488.00	520.00	563.00	32.40	496.00	546.00	587.00	633.00	35.60
98	479.00	520.00	553.00	599.00	34.50	528.00	581.00	624.00	674.00	38.30
102	519.00	563.00	599.00	649.00	37.40	572.00	629.00	676.00	730.00	41.50


FC				IWRC
Diameter (mm)	Tensile Strength 160 Kgf/mm²	Tensile Strength 180 Kgf/mm²	Approx Wt. Kg/100M	Tensile Strength 160 Kgf/mm²	Tensile Strength 180 Kgf/mm²	Approx Wt. Kg/100M
Wire	Min Breaking Load (KN)		FC	Min Breaking Load (KN)		IWRC
8	31.30	33.10	21.40	36.90	39.20	27.00
9	39.60	42.00	27.10	46.70	49.60	34.20
10	48.90	51.80	33.40	57.70	61.20	42.20
11	59.20	62.70	40.40	69.90	74.10	51.10
12	70.40	74.60	48.00	83.20	88.10	60.80
13	82.60	87.60	56.40	97.60	103.00	71.30
14	95.90	101.00	65.40	113.00	120.00	82.70
16	125.00	132.00	85.40	147.00	156.00	108.00
18	158.00	168.00	108.00	187.00	198.00	137.00
20	195.00	207.00	133.00	231.00	244.00	169.00
22	236.00	251.00	162.00	279.00	296.00	204.00
24	281.00	298.00	192.00	332.00	352.00	243.00


No.of wires	Steel wire diameter	Diameter	Area	Nominal tensile strength of Gal.steel wire (Mpa)					Approximate Weight of stand
				1175	1270	1370	1470	1570
				Breaking strength of strand
	mm	mm	mm²	KN≥					Kg/100M
1×7	1.60	4.8	14.07	16.53	17.87	19.28	20.68	22.09	11.17
	1.80	5.4	17.81	20.93	22.62	24.40	26.18	27.96	14.14
	2.00	6.0	21.99	25.84	27.93	30.13	32.32	34.52	17.46
	2.20	6.6	26.60	31.26	33.78	36.44	39.10	41.76	22.77
	2.30	6.9	29.08	34.17	36.93	39.84	42.75	45.66	23.09
	2.60	7.8	37.17	43.60	47.20	50.92	54.63	58.30	29.51
	2.90	8.7	46.24	54.33	58.72	63.36	67.97	72.60	36.71
	3.00	9.0	49.48	58.14	62.84	67.79	72.74	77.68	42.38
	3.20	9.6	56.30	66.15	71.50	77.13	82.76	88.39	44.70
	3.50	10.5	67.35	79.14	85.85	92.27	99.00	105.74	53.48
	3.80	11.4	79.39	93.28	100.82	108.76	116.70	124.64	63.04
1×19	1.60	8.0	38.2	44.88	48.51	52.38	56.15	59.97	30.40
	1.80	9.0	48.35	56.81	61.40	66.24	71.07	75.91	38.49
	2.00	10.0	59.69	70.14	75.81	81.77	87.74	93.71	47.51
	2.20	11.6	72.22	84.86	91.71	98.94	106.16	113.39	56.69
	2.30	11.5	78.94	92.75	100.25	108.15	116.04	123.94	62.84
	2.60	13.0	100.88	118.53	125.12	138.20	148.29	158.38	80.30
	2.90	14.5	125.50	147.46	159.38	171.93	184.48	197.03	99.90
	3.00	15.0	134.30	157.80	170.56	183.99	197.42	210.85	105.43
	3.20	16.0	152.81	179.55	194.06	209.35	224.63	239.91	121.64

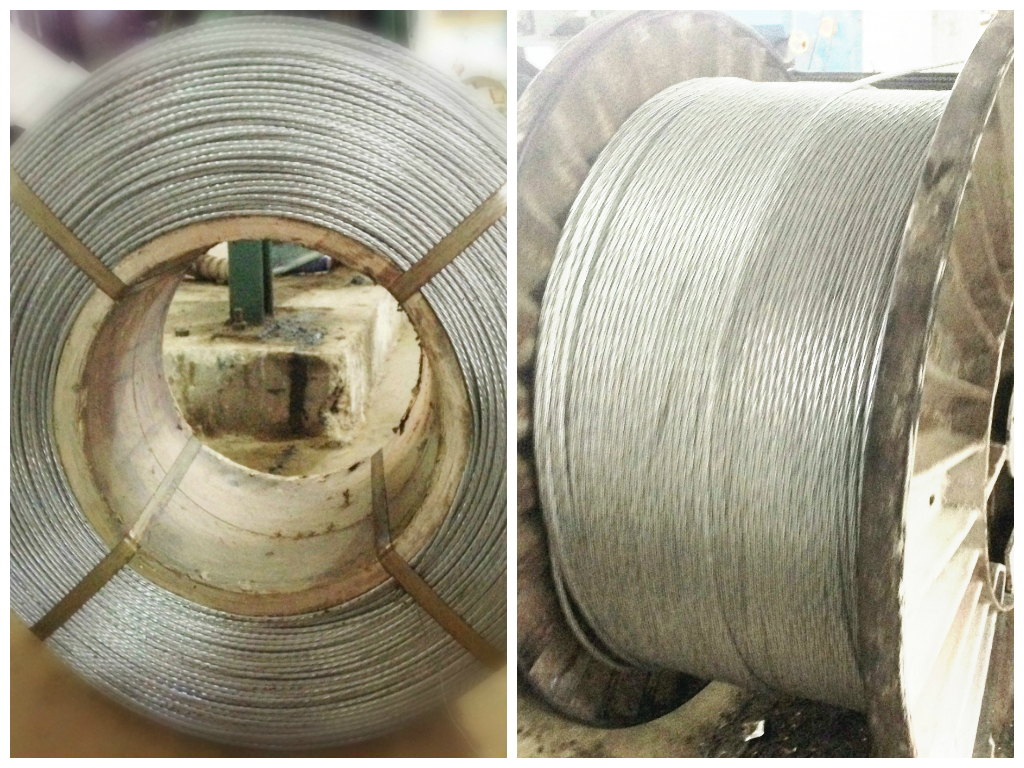

Application	Used for mechanical re-inforcement in the manufacture of aluminum conductor steel reinforced(ACSR) Cable & Conductor ACSR Core wire is used in reinforcement of aluminium conductors used in distribution and transmission of electricity.
Material	High carbon.
Diameter	1.25mm - 4.77mm
Packing	In coils, on spool.
Standards	ASTM B498, IEC60888, IS 398 - Part II etc.

ASTM B498 - 93 Class A Coating
Nominal Diameter mm		Size Tolerance mm		Ultimate Tensile Strength Min		Stress at 1 % Extension Min		% Elongation Min	Zn coating Min	Wrapping Mandrel Dia
From	To - Incl.	+	-	MPa	Kg/mm²	MPa	Kg/mm²	GL = 250 mm	g/m²	mm
1.27	1.521	0.038	0.025	1450	148	1310	133	3	183	3d
1.524	1.902	0.038	0.025	1450	148	1310	133	3	198	3d
1.905	2.283	0.038	0.025	1450	148	1310	133	3	214	3d
2.286	2.639	0.051	0.051	1410	144	1280	130	3.5	229	4d
2.642	3.045	0.051	0.051	1410	144	1280	130	3.5	244	4d
3.048	3.553	0.076	0.051	1410	144	1240	126	4	259	4d
3.556	4.569	0.102	0.076	1380	141	1170	119	4	274	5d
4.572	4.822	0.102	0.076	1380	141	1170	119	4	305	5d

PC Wire	PC wire with high tensile strength is widely used in many fields, such as prestressed concrete structures, industrial and commercial buildings.
PC Strand	PC strand, with good relaxation property and yield strength, is used in concrete structures, road and bridge structures, building structures, etc.


Round Wire Stress Relieved
Standards	Nominal Diameter		Tolerance of Dia		Tensile Strenght		Yield Strenght
Standards	In.	mm	In.	mm	P.S.I	kg/mm²	P.S.I	kg/mm²
BS 2691 - 1969 Normal Relaxaion	0.157	4	±0.002	±0.050	244600 - 277300	172 - 195	107600	146
	0.197	5	±0.002	±0.050	223300 - 256000	157 - 180	189100	133
	0.197	5	±0.002	±0.050	244600 - 277300	172 - 105	207600	146
	0.276	7	±0.002	±0.050	209000 - 241800	147 - 170	177700	125
	0.276	7	±0.002	±0.050	223300 - 256000	157 - 180	189100	133


Wire Strand Stress Relieved
Standards	Nominal Diameter (D)		Tolerance of Dia		Breaking Strenght (Min.)		Minimum Load at 1% extension
Standards	In.	mm	In.	mm	P.S.I	kg/mm²	P.S.I	kg/mm²
Grade 250	1/4	6.35	±0.016	±0.40	9000	4082	7650	3470
	5/16	7.94	±0.016	±0.40	14500	6577	12300	5591
	3/8	9.52	±0.016	±0.40	20000	9072	17000	7711
	7/16	11.11	±0.016	±0.40	27000	12247	23000	10410
	1/2	12.70	±0.016	±0.40	36000	16330	30600	13880
Grade 270	3/8	9.52	+0.026 -0.006	+0.66 -0.15	23000	10433	19550	8868
	7/16	11.11	+0.026 -0.006	+0.66 -0.15	31000	14062	26350	11952
	1/2	12.70	+0.026 -0.006	+0.66 -0.15	41300	18734	35100	15972
Normal Relaxation Strand	1/4	6.4	+0.016 -0.008	+0.4 -0.2	9808	4450	8353	3790
	5/16	7.9	+0.016 -0.008	+0.4 -0.2	15208	6900	12937	5870
	3/8	9.3	+0.016 -0.008	+0.4 -0.2	20607	9350	17522	7950
	7/16	10.9	+0.016 -0.008	+0.4 -0.2	27550	12500	23428	10630
	1/2	12.5	+0.016 -0.008	+0.4 -0.2	36366	16500	30922	14030
	0.6	15.2	+0.016 -0.008	+0.4 -0.2	50031	22700	42537	19300

Application	Suitable for telegram, telephone, optical fibre, communication cables.
Executive Standards	GB346-84, GB3082-84.

Nominal Diameter	Tensile Strength	Elongation not less than
(mm)	(MPa)	L₀ = 200mm
0.5	350 ~ 540	12
0.8
1.0
1.2
1.5
2.0
2.5
3.0
4.0
4.5

Product Description

If galvanized wire for signalling is to play an important part in the communication system of a country properly, it must, primarily, be able to withstand all the gruelling tests put to it by natural atmospheric conditions.

The Pakistan Wire Rope's plant is occupied with newly installed galvanizing lines and greatly imporoved galvanizing techniques all PWR galvanized wires for singnalling are manufacutured according to the following specifications.

Diameter		Wt. / Ft.	Wt. / Mile	Length / Ton	Ultimate tensile Strength
Inch	mm.	Lbs.	Ft..	Lbs.	Kgs/mm²	Tons/inch²
0.056	1.42	0.008364	44.16	268500	126 to 142	80.90

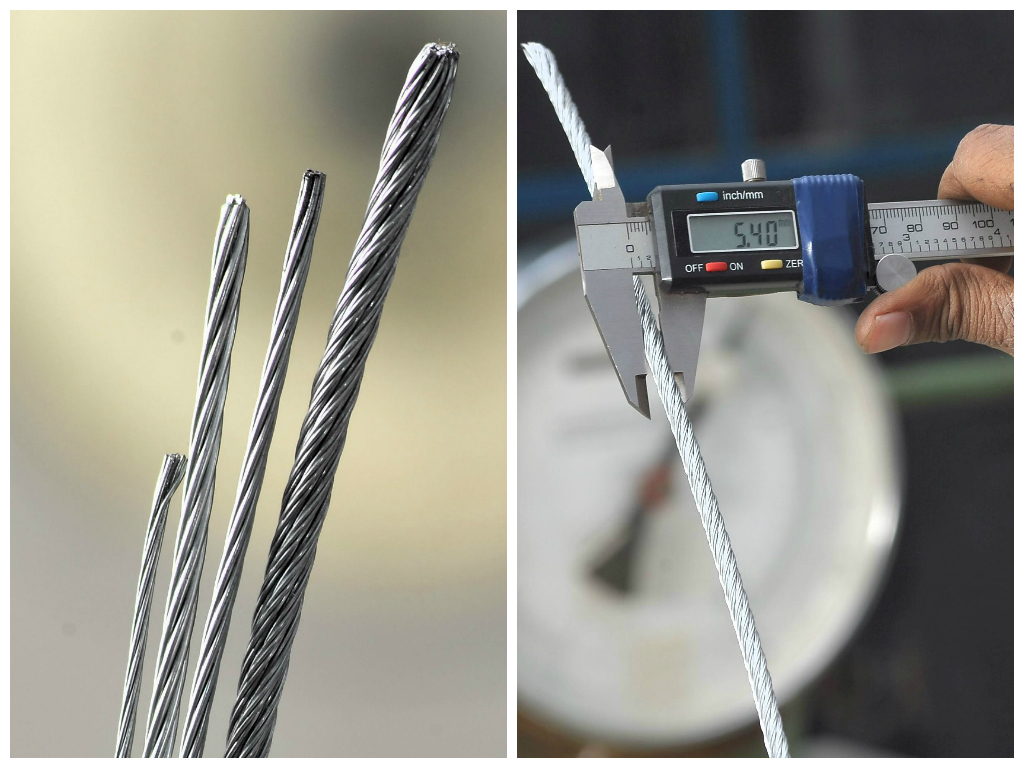

Product Description	A guy-wire, guy-rope or guide-wire, also known as simply a guy, is a tensioned cable designed to add stability to a free-standing structure. They are used commonly in wind turbines, utility poles, fire service extension ladders used in church raises and tents.
Application	Suitable for hanger, hang, communication cable, overhead power linne and fixing subject etc.
Standards	GB1179 - 1999.


No.of wires	Wire Diameter	Diameter	Area	Nominal tensile strength of Gal.steel wire (Mpa)			Approximate Weight of stand
				1370	1470	1570
				Breaking strength of strand
	mm	mm	mm²	KN≥			Kg/100M
1×7	1.0	3.0	5.50	7.54	8.08	8.64	4.37
	1.2	3.0	7.92	10.85	11.64	12.43	6.29
	1.4	4.2	10.78	14.77	15.85	16.92	8.56
	1.6	4.8	14.07	19.28	20.68	22.09	11.17
	1.8	5.4	17.81	24.40	26.18	27.96	14.14
	2.0	6.0	21.99	30.13	32.32	34.52	17.46
	2.3	6.9	29.08	39.84	42.75	45.66	23.09
	2.6	7.8	37.17	50.92	54.63	58.41	29.51
	2.9	8.7	46.24	63.35	67.97	72.66	36.71
	3.0	9.6	56.30	77.13	82.76	77.76	44.70
	3.5	10.5	67.35	92.27	98.98	105.84	53.48
	3.8	11.4	79.39	108.76	116.68	124.76	63.04
	4.0	12.0	87.95	120.64	129.28	138.24	69.92
1×19	1.60	8.0	38.20	52.33	56.15	59.97	30.40
	1.80	9.0	48.35	66.24	71.07	75.91	38.49
	2.0	10.0	59.69	81.78	87.74	93.71	47.51
	2.3	11.5	78.94	108.15	116.04	123.74	62.84
	2.6	13.0	100.88	138.20	148.29	158.39	80.30
	2.9	14.5	125.50	171.93	184.48	197.05	99.90
	3.0	15.0	134.31	183.96	197.37	210.87	106.92
	3.5	17.5	182.81	250.39	268.64	287.02	145.53
	3.8	19.0	215.49	295.15	316.67	338.33	171.55
	4.0	20.0	238.77	327.04	350.88	374.88	190.08

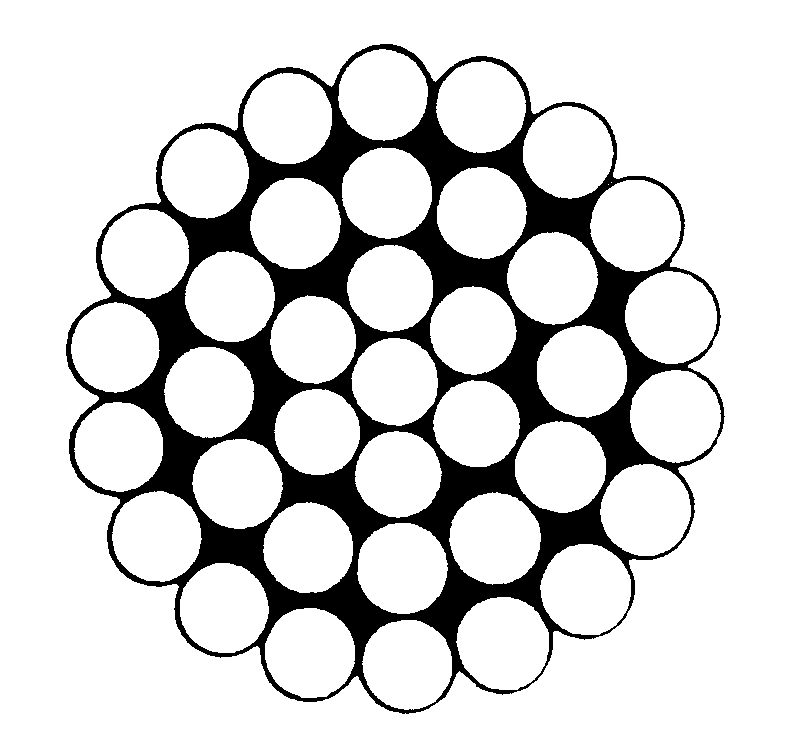

1×37	1.6	11.2	14.07	19.28	20.68	22.09	59.70
	1.8	12.6	17.81	24.40	26.18	27.96	75.60
	2.0	14.0	21.99	30.13	32.33	34.52	93.30
	2.3	16.1	29.08	39.84	42.75	45.66	123.00
	2.6	18.2	37.17	50.92	54.64	58.36	158.00
	2.9	20.3	46.24	63.35	67.97	72.60	196.00
	3.0	21.0	49.48	67.79	72.74	77.68	210.00
	3.5	24.5	67.35	92.27	99.00	105.74	286.00
	3.8	26.6	79.39	108.76	116.70	124.64	337.00
	4.0	28.0	87.96	120.51	129.30	138.10	373.00
	4.2	29.4	96.98	132.86	142.56	152.26	411.00
	4.4	30.8	106.44	145.82	156.47	167.11	452.00

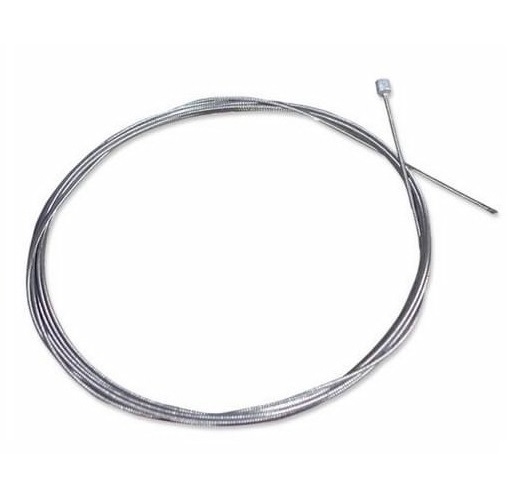

Application	Suitable for Clutch Cable, Throttle Cable, Brake Cable, Speedometer Cable and Tachometer Cable etc.
Standards	JIS 3540.

Construction	Diameter	Weight	Minimum Breaking Load
Construction	mm	Kg/100M	KG's
1x19	1.0	0.495	95
	1.2	0.713	144
	1.5	1.114	220
	1.8	1.604	320
	2.0	1.98	390
	2.4	2.851	565
	2.5	3.094	610
7x7	1.0	0.393	65
	1.2	0.566	95
	1.5	0.884	150
	1.8	1.273	210
	2.0	1.527	265
	2.4	2.264	380
	2.5	2.381	410
	3.2	3.901	680
	3.8	5.502	960
	4.2	6.933	1300
	4.5	7.958	1350
7x19	3.2	4.024	685
	3.8	5.675	965
	4.0	6.609	1250
	4.8	8.778	1530
	6.0	8.716	2390
	2.4	2.851	565
	2.5	3.094	610

Application	Pak Slings are manufactured steel wire rope slings as per BS EN 13414-2 Standard for general lifting services. It covers Single leg Slings , with ferrule-Secured or spliced eye termination from 8,0 mm to 26 mm diameter 6 strand ordinary lay steel wire rope with Fiber or steel core and 8 strand ordinary lay steel Wire Rope with Fibre Core conforming to JIS-G 3525.
Material	High carbon wire rod.
Formation of Eye	Ferrule-Secured Eye Slings, Spliced Eye Slings.
Standards	BS EN 13414-1
Construction	6x19, 6x37, 6x26, 8x19
Diameter	10mm - 26mm
Packing	as per Customer specified bearing to bearing length.
Specifications	Click Here

Application	Cotton baling, waste paper baling or other application.
Material	Low carbon steel or high carbon steel.
Diameter	1.0mm –3.5mm.
Coating	Electro galvanized, hot dipped or ungalvanized.
Packing	In bundle and on pallet.
Tensile Strength	Low carbon 350-600N/mm²; High carbon around 2000 N /mm².
Standards	JIS 3521 SW-C.

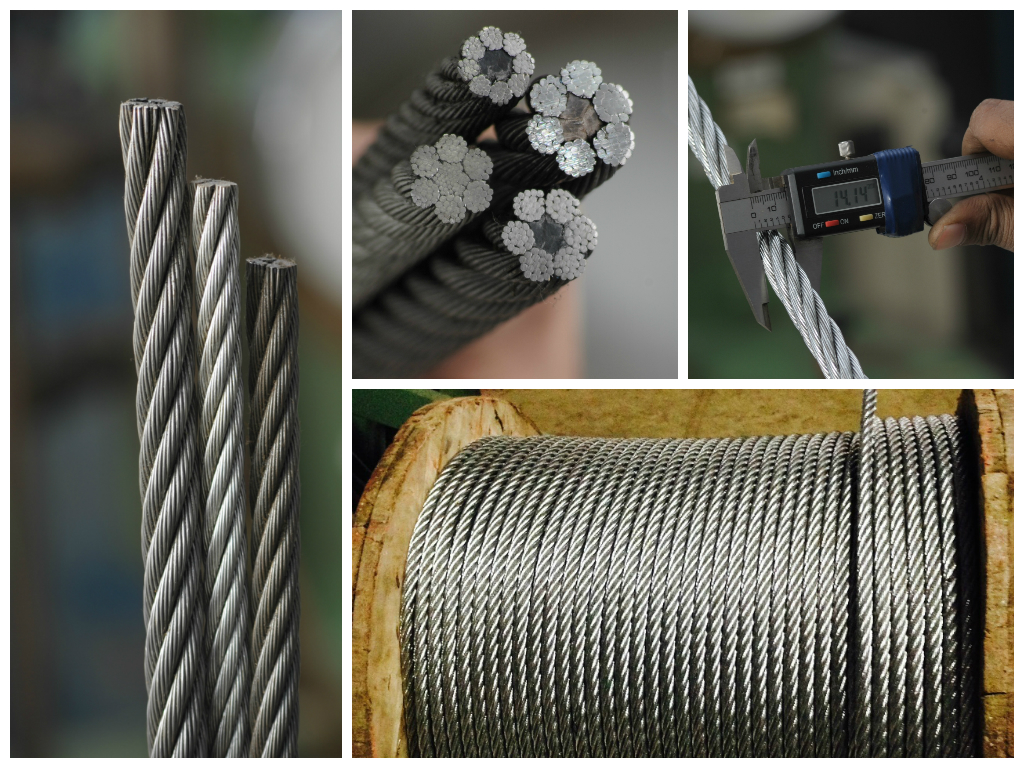

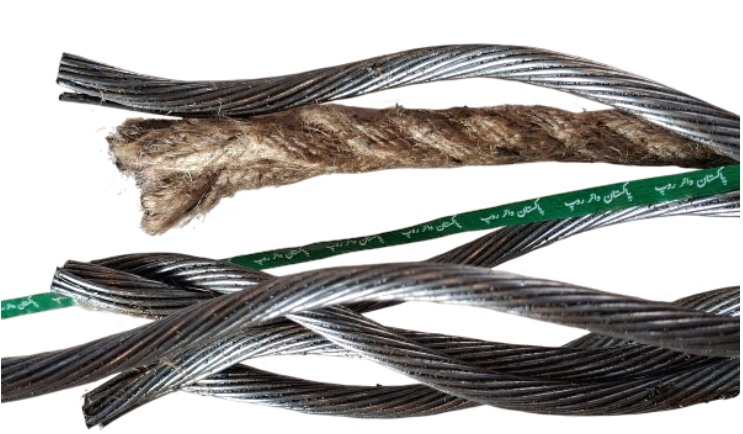

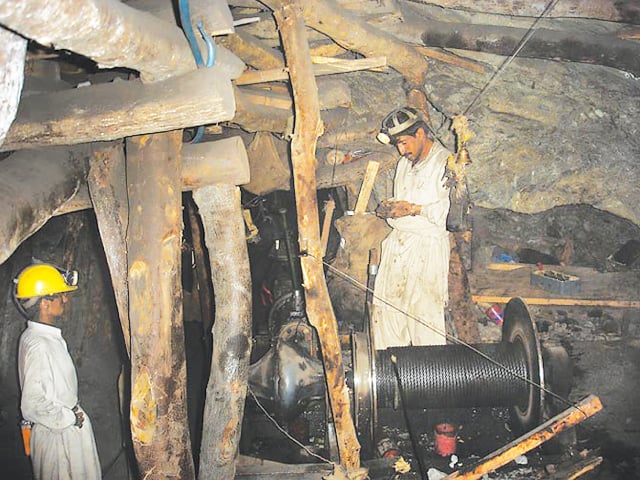

Application	Providing excellent quality PWR (Pakistan Wire Rope) has emerged as a market leader in meeting local needs of fishery, mining, agriculture, bracing, suspension bridges, crane and elevator/engineering market segments of the country.
Material	High carbon wire rod as per JIS G 3606.
Construction	6x7 & 7x7, 6x12 with Hemp Core, 6x19, 6x19 (Seale) With Fiber/ Nylon core/IWRC/IWS, 6x24 FC, 6x25, 6x26 FC / IWRC, 6x29, 6x31 FC / IWRC, 6x36 FC / IWRC, 6x37 FC / IWRC and 8x19 (Seale) with Fiber/Nylon/IWRC/IWS.
Diameter	8.0 to 40 mm.
Breaking Load	(N/mm²) - 1470, 1570, 1670, 1770 & 1870. (Kgf/mm²) - 150, 160, 170, 180 & 190
Lubrication	As per requirement (light, medium & heavy).
Length	Upto 1500 Meters.
Packing	Coils, Wooden Reels.
Standards	JIS G 3525, BSS 302, ISO 2408 & EN 10624-2.
Certificates	Mill Test Sheet and/or third party inspection.
Remarks	Shipping Marks and any other special requirements.

Pakistan Wire Industries (Pvt.) Ltd.

E-51 Textile Avenue, S.I.T.E. Karachi Pakistan.

Tel: +92-21-3257-7406 , +92-21-3257-6958

Our Products

Quick Links

Brochure Section

Pakistan Wire Industries

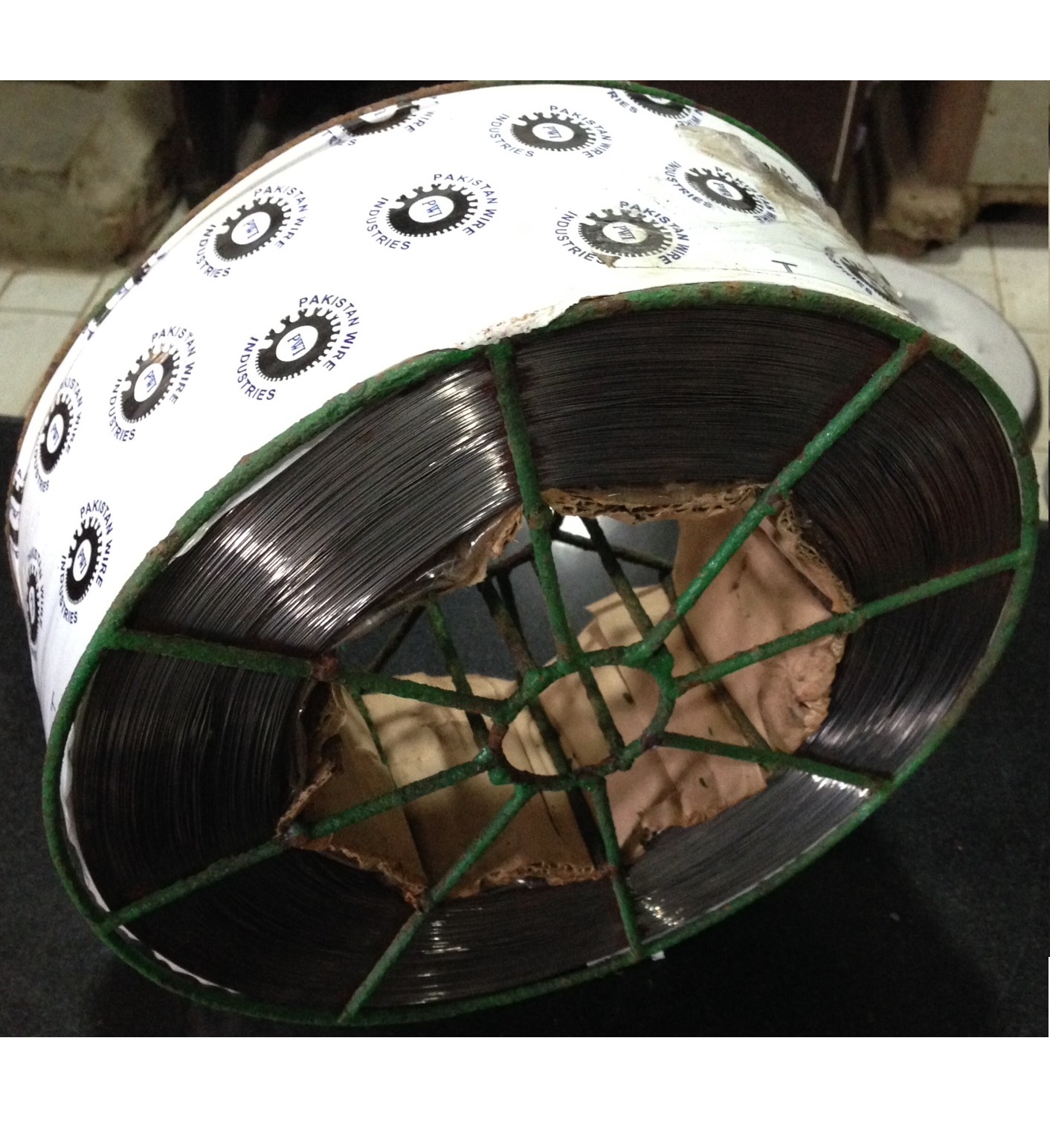

Application	Spoke Wire is used in the manufacturing of cycle, rickshaw, moped, motorcycle and three wheeler spokes.
Material	Medium Carbon, High Carbon, Mild Steel or according to customer specifications.
Diameter	2.0 mm - 4.0 mm
Standards	SWA Or SWB/AISI 45-B/G-3521 Or EQIV.

Application	Weaving, binding, tie wire in building, parks and daily binding, or for further straightened and cut into cut wire or U type wire.
Material	Low carbon steel.
Diameter	0.2mm - 5.0mm
Coating	Ungalvanized.
Packing	Spool, normal coil, orbit coil etc.
Tensile strength	300 - 500 N/mm.
Standards	BSS 1408.
